High Pressure / High Temperature Solutions

Completion technology for challenging applications

Packers Plus Titanium™ XV completion solutions are specially engineered for open and cased hole, multi-stage stimulation in wells where differential pressures can reach up to 18,000 psi (103 MPa) and extreme bottom hole temperatures can be encountered. These field-proven solutions have been successfully deployed in some of the most challenging downhole environments, including offshore and geothermal wells.

Packers Plus Titanium XV completion solutions are modular with regard to tool placement, enabling different combinations of tools to be deployed, depending on well conditions, to create a customized design for targeted delivery of the stimulation program.

Packers Plus HPHT completion solutions offer many features and benefits

Mitigates risk associated with burst and collapse scenarios with 15,000 psi (103 MPa) ratings on all metal parts
Stimulate more of the wellbore with improved isolation using field-proven mechanical Titanium XV RockSEAL® packers
Increase production by accessing natural fractures in open hole applications
Custom stimulation programs by combining a variety of Packers Plus tools to complete the entire lateral

Titanium XV completion solutions for HPHT applications

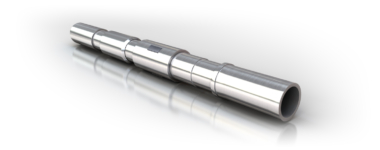

Titanium XV Liner Hanger Packer

The Titanium XV Liner Hanger Packer is a production or injection packer designed to provide mechanical isolation for downhole pressures up to 18,000 psi and extreme bottom hole temperatures. The Titanium XV Liner Hanger Packer sealbore is available in various lengths with a variety of seal assemblies to provide versatility with tubing movement requirements. Additionally, the seal assemblies can be latched or landed into the sealbore.

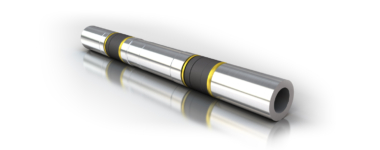

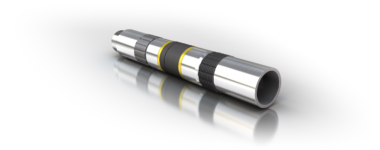

Titanium XV RockSEAL Packer

The Titanium XV RockSEAL packer is a dual-element, solid-body, hydraulically set open hole packer that combines the sealing strength of a mechanical element with the setting force of a dual-piston cylinder and mechanical body-lock system to provide high-pressure zonal isolation during stimulation operations and throughout the life of the well.

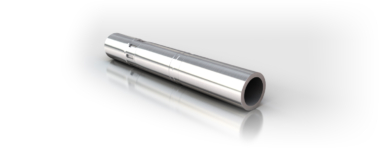

Titanium XV FracPORT™ Sleeve

The Titanium XV FracPORT sleeve is a ball-actuated, hydraulically activated injection/production port designed to provide stimulation for differential pressures up to 15,000 psi and extreme bottom hole temperatures. The Titanium XV FracPORT sleeve is run between two Titanium XV RockSEAL packers to allow specific zones of the wellbore to be isolated and selectively stimulated.

Titanium XV Hydraulic Anchor

The Titanium XV Hydraulic Anchor is a hydraulically set anchor that features a slip arrangement with exceptional holding power to keep the system from moving under the hydraulic and mechanical forces that may be exerted on the liner. It can be used to provide extra anchoring for stimulation at the toe of the wellbore or anywhere along the system that requires extra stability.

Request Technical Information

Learn more about HPHT completions with Titanium XV solutions

Case Study

Packers Plus reduces completion costs by 30% in HPHT reservoir

Case Study

Corrosion resistant HPHT solution delivered with StackFRAC Titanium XV open hole multi-stage ball-activated system

Packers Plus successful stimulation services begin with a fully integrated quality assurance and quality control (QA/QC) process that begins at the design stage and follows each tool through manufacturing, assembly, testing, shipping and installation. Automation and robotics are incorporated into our proven process to ensure consistency and repeatability of key criteria in each step as we design, develop and manufacture our patented tools and systems. As a commitment to quality and meeting stringent standards, Packers Plus has achieved ISO 9001 certification and API Q1 Certification for our manufacturing and engineering operations in Edmonton, AB, and ISO 9001 in Houston,
